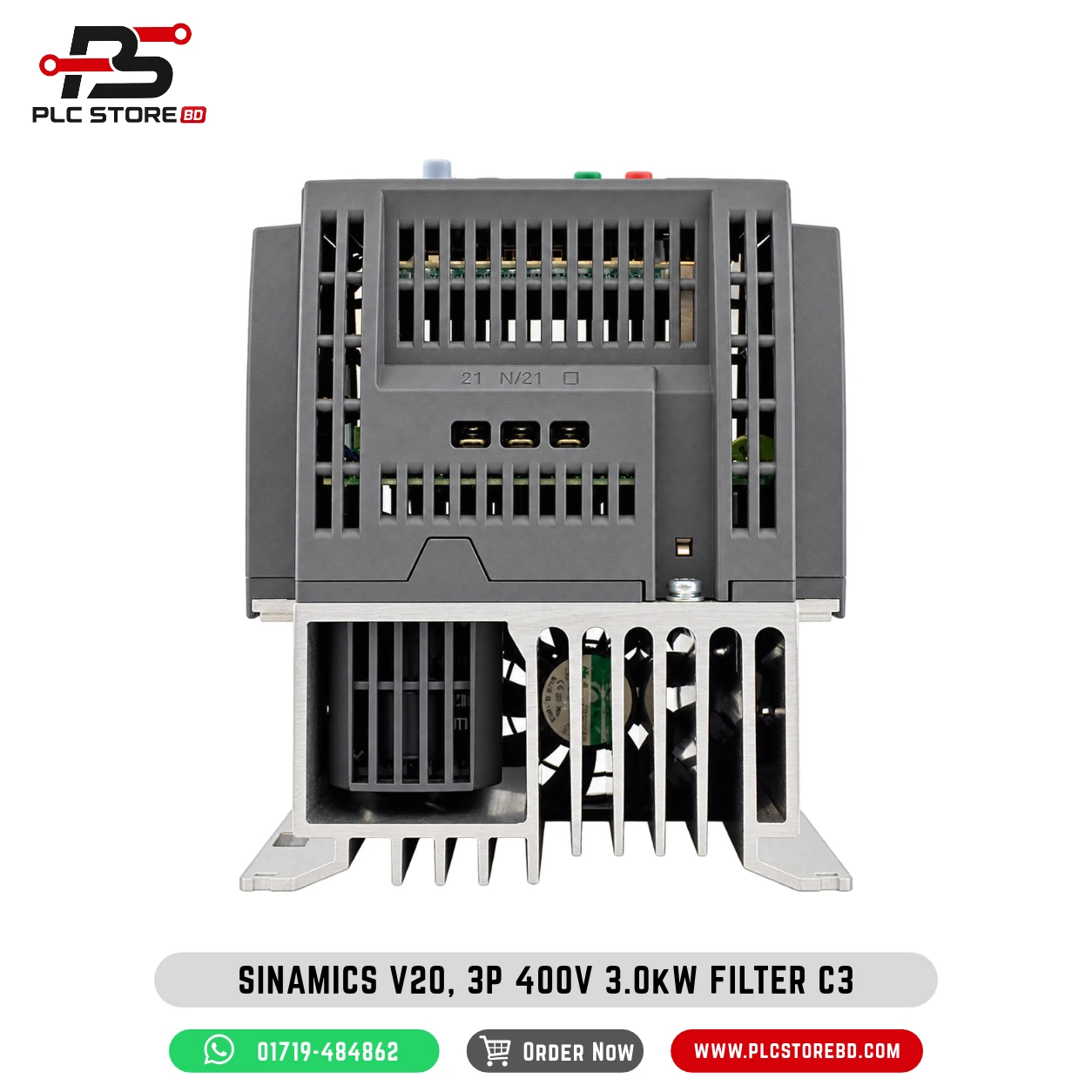

Siemens SINAMICS V20 6SL3210-5BE23-0CV1 3 kW 3-Phase VFD

Siemens SINAMICS V20 6SL3210-5BE23-0CV1 3 kW 3-Phase VFD

Overview

The Siemens SINAMICS V20 6SL3210-5BE23-0CV1 is a basic AC variable frequency drive designed for controlling compatible three-phase motors in industrial machinery and building-services equipment. This specific CV1 order number is a 3.0 kW model for three-phase 380–480 V AC supply, with a built-in C3-category EMC filter and an integrated braking unit. It belongs to the compact SINAMICS V20 family. Specifying the complete order number is important: the older 6SL3210-5BE23-0CV0 predecessor does not have the same integrated braking hardware. The V20 provides an operator panel on the drive for straightforward commissioning and parameter adjustments.

Electrical Ratings

The nominal drive power is 3.00 kW in both Siemens Low Overload (LO) and High Overload (HO) classifications. Siemens also lists a 4.00 hp rating under the datasheet’s relevant NEC voltage conditions; this figure is manufacturer-provided, not a conversion calculated for this page. Supply requirement is three-phase 380–480 V AC, with an allowable line-voltage tolerance of −15% to +10%, and an input frequency of 47–63 Hz. It is not intended to be connected directly to a single-phase mains supply. The output is three-phase, with Siemens specifying nominal IEC 400 V and NEC 480 V voltage bases. Its rated continuous output current is 7.30 A for both LO and HO duty, and Siemens also lists 7.30 A at 480 V under its published test conditions. The configurable output frequency range is 0–550 Hz. That upper frequency capability does not mean every connected motor or mechanism can safely operate at such a speed. Motor nameplate data and mechanical limits must govern commissioning.

Control Modes and Performance

SINAMICS V20 is intended for adjustable-speed motor service and includes V/f-oriented control capabilities, ramp management and application functions described in the operating instructions. Match the chosen mode and parameter configuration to the motor and mechanical load. Siemens rates Low Overload operation at 110% of rated output current for 60 seconds within a 300-second cycle. High Overload is rated at 150% of rated output current for 60 seconds within a 300-second cycle. These are time-limited overload allowances, not continuous current ratings. They should not be used to justify selecting an undersized drive for a continuously overloaded motor. The published current remains 7.30 A in both modes for this exact rating.

Communication and Configuration

The exact CV1 model provides built-in USS and Modbus RTU fieldbus capability, as stated in Siemens’ V20 documentation. The physical serial interface and its configuration should be wired according to the operating instructions; communication is not automatically Ethernet merely because a connector may be present. Siemens lists four digital inputs, two digital outputs, two analog inputs and one analog output for this version. The basic operator panel (BOP) is integrated, permitting local settings and status viewing. System-level communications, external control devices and any separately purchased accessories must be selected for the actual project requirements.

Braking, EMC and Built-in Functions

This CV1 order number is the integrated-filter C3 variant. EMC category suitability depends on correct installation, cable routing, earthing and the applicable installation environment; it should not be described as universally compliant for every domestic or commercial site. The model includes an integrated braking unit (braking chopper). A braking resistor is a separate external system component and is not verified as included with the drive. For repeated deceleration or high-inertia machines, braking resistor selection, duty, thermal protection and installation must follow Siemens engineering guidance. Do not confuse the braking transistor or chopper inside the converter with the external resistor needed to dissipate regenerated energy. The earlier CV0 hardware lacks this integrated braking function.

Installation and Typical Applications

The unit has IP20 / UL open-type protection and Siemens identifies the FSB mechanical frame. Its nominal envelope is approximately 140 × 160 × 164.5 mm (width × height × depth); verify installation drawings and mounting clearances before replacing a drive in an existing cabinet. Siemens identifies fan cooling and environmental limits that may require derating at elevated temperatures or altitude. Install in an appropriate electrical enclosure, with protection and disconnecting arrangements designed for the site and local electrical regulations. Technically appropriate uses include compatible small conveyors, pumps, fans, mixers, process auxiliaries and modest materials-handling systems, provided the motor ratings, acceleration loads, control method and braking requirements are suitable. Precise fitness for a specific application depends on motor and machine details. Claimed efficiency improvements should be evaluated for each duty cycle rather than guaranteed by the drive rating alone.

Exact Variant Verification

The complete part number 6SL3210-5BE23-0CV1 identifies a 3.0 kW three-phase-input, C3-filtered SINAMICS V20 revision with integrated braking hardware. It must not be substituted with 6SL3210-5BE23-0CV0 without evaluating the braking difference, or with the unfiltered UV1 model without reviewing EMC requirements. Siemens documentation is the authority for wiring details, commissioning parameters, operating limits and associated protective components. All quoted electrical figures are model-specific; accessories, motors, external resistors and upstream protective devices have not been treated as included.

Manufacturer Documentation

Official Manufacturer Product Page: https://mall.industry.siemens.com/mall/en/ww/Catalog/Product/6SL3210-5BE23-0CV1

Official Manufacturer Datasheet / Technical Documentation: https://mall.industry.siemens.com/mall/en/ru/Catalog/teddatasheet/?caller=Mall&format=PDF&language=en&mlfbs=6SL3210-5BE23-0CV1

Official Operating Instructions: https://support.industry.siemens.com/cs/attachments/109977897/V20_op_instr_1224_en-US.pdf
