Product Identity

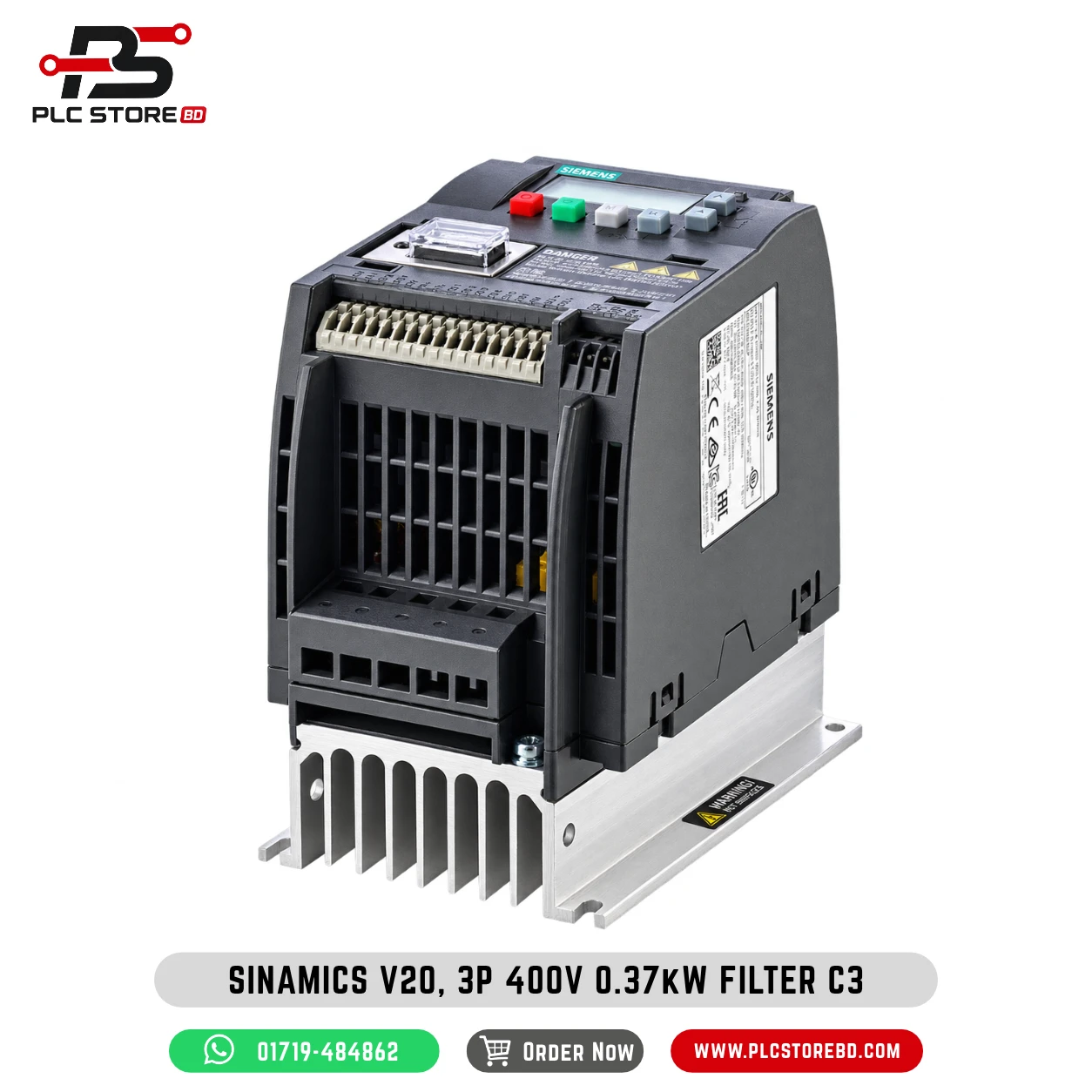

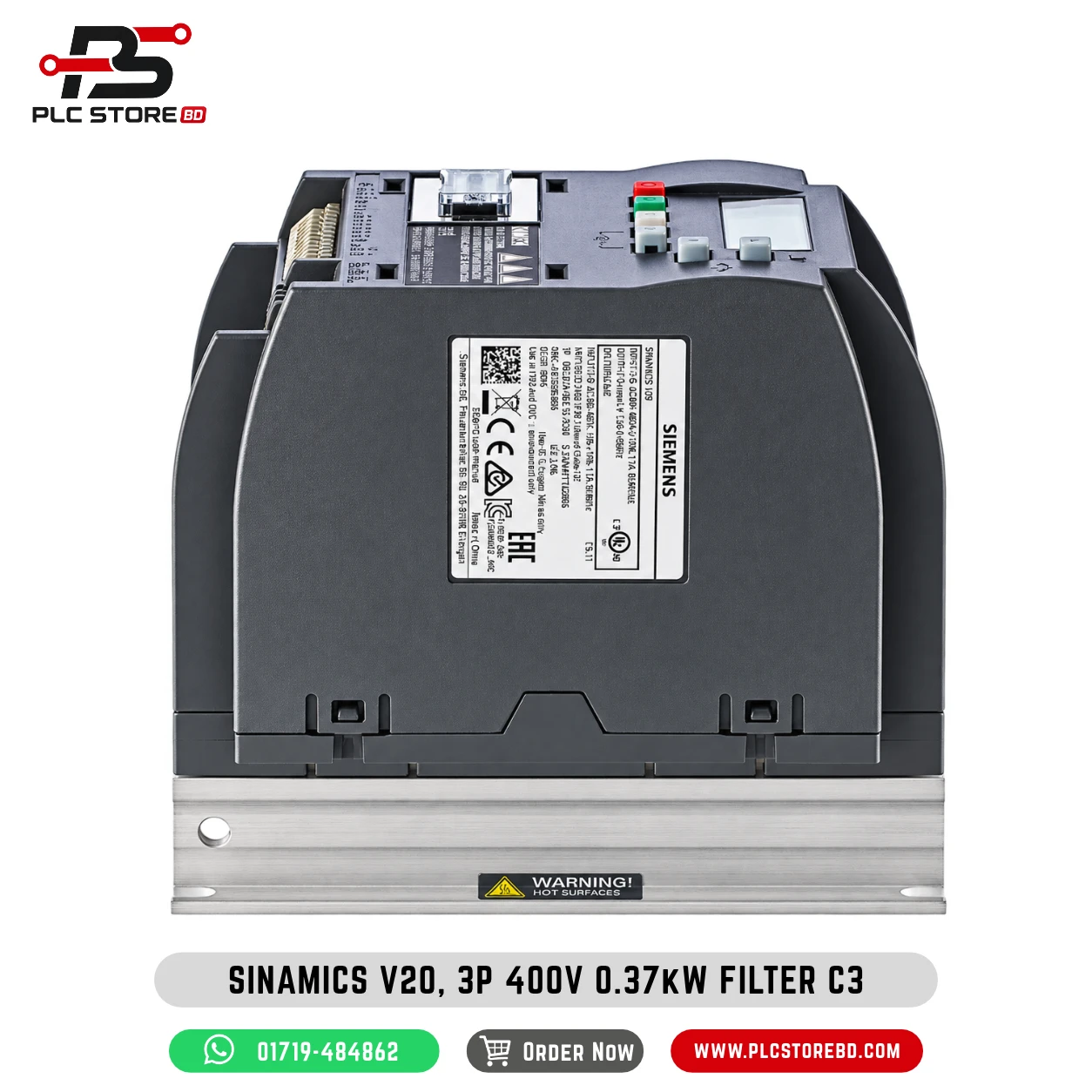

The Siemens SINAMICS V20 6SL3210-5BE13-7CV0 is a compact variable frequency drive for regulating the speed of a compatible three-phase asynchronous motor. This exact three-phase-input model is rated 0.37 kW (manufacturer-listed 0.50 hp) with 1.30 A continuous output. It belongs to the 380–480 V AC input class and uses the filtered configuration. Product specifications should always be checked against the complete order number, including CV0, because other SINAMICS V20 models can have different phase, power, filter, frame or current ratings.

Electrical Ratings

The inverter accepts a three-phase 380–480 V AC mains supply with a manufacturer-stated -15%/+10% tolerance and a 47–63 Hz mains frequency. The three-phase motor output is specified at 400 V IEC nominal, with a 480 V NEC rating also listed. The power rating is 0.37 kW / 0.50 hp in both Low Overload (LO) and High Overload (HO) classifications. Rated continuous output current is 1.30 A in both classifications. Output frequency is adjustable over 0–550 Hz; this drive capability must not be interpreted as a permissible speed for any particular motor or attached machine.

Control Modes and Performance

SINAMICS V20 is intended for basic variable-speed control of three-phase induction motors. The exact-part Siemens datasheet specifies Low Overload capacity of 110% rated output current for 60 seconds in a 300-second cycle, and High Overload capacity of 150% for 60 seconds in a 300-second cycle. Both duty classifications list the same nominal motor power and output current for this exact part. The 4.00 kHz pulse frequency shown in the current Siemens datasheet is a drive configuration datum, not the output frequency. Other control features must be configured and verified for the connected motor and application.

Communication and Configuration

Siemens lists USS and Modbus RTU communication for this drive. These are built-in supported communication protocols; a protocol does not by itself establish the presence of Ethernet. The product listing identifies a built-in basic operator panel (BOP) for local operation and commissioning. Siemens also specifies four standard digital inputs, two digital outputs, two analog inputs and one analog output. Exact terminal assignments, parameter settings and wiring arrangements should be confirmed in the appropriate operating instructions before installation.

Braking, EMC and Built-in Functions

This CV0 order-number variant is supplied with an integrated EMC filter. The Siemens exact-model datasheet describes it as ‘Class A’, while the manufacturer-derived product description identifies the integrated filter as ‘C3’. These describe the filter in different documentation contexts; installation and emissions compliance require checking the applicable Siemens instructions, cable lengths and installation environment. The datasheet explicitly states that an integrated braking chopper is not present. Do not assume that a braking resistor or a separate braking unit is included.

Installation and Typical Applications

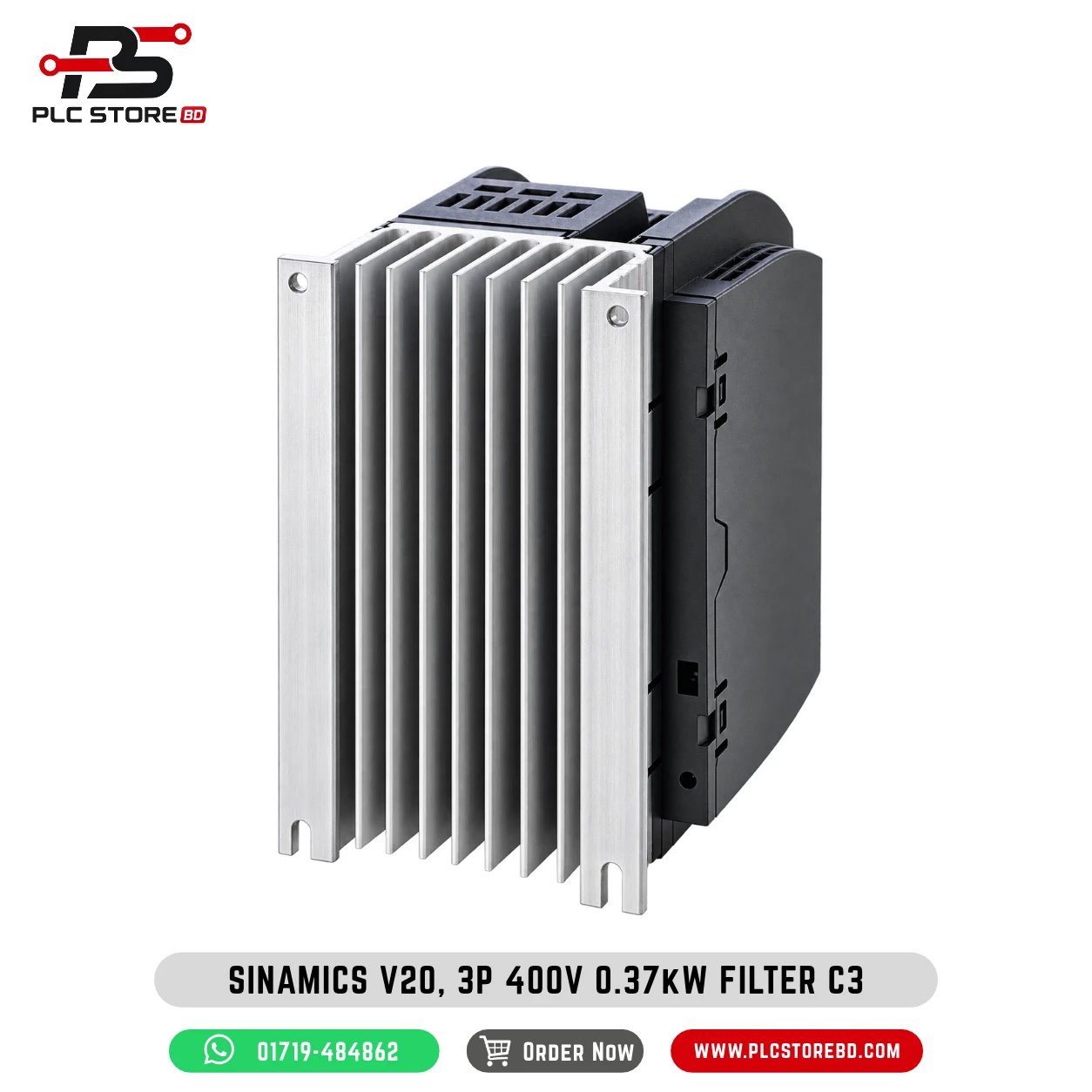

The converter is an IP20 / UL open-type product and needs installation in a suitable protected location or control enclosure. Siemens documents frame size FSA and dimensions of approximately 90 × 150 × 145.5 mm (width × height × depth). The drive uses convection cooling, with wall or side-by-side mounting documented. Siemens lists -10 to +60 °C as an operating ambient-temperature range, subject to manual footnotes and applicable derating. The nominal installation altitude is 1,000 m, and maximum operating relative humidity is 95%. Documented maximum motor-cable lengths are 10 m shielded or 50 m unshielded, subject to installation conditions. A properly selected converter of this class can be considered for small pumps, fans, conveyors and general speed-control duties where the connected motor, load profile and protection arrangements are compatible; these are engineering application suggestions, not promises of suitability.

Exact Variant Verification

The full designation 6SL3210-5BE13-7CV0 denotes the 0.37 kW filtered three-phase 380–480 V SINAMICS V20 version. It must not be confused with the 200–240 V single-phase BB-series models or with the unfiltered 6SL3210-5BE13-7UV0. The current Siemens-generated datasheet is the priority source for ratings, output current, overload times and dimensions. Earlier third-party copies report a different pulse-frequency figure, so this workbook uses the current manufacturer’s 4.00 kHz statement. Product images have not been embedded because none were supplied or verified against this precise part number.
