Siemens SINAMICS V20 6SL3210-5BB22-2BV1 2.2 kW 1-Phase VFD

Siemens SINAMICS V20 6SL3210-5BB22-2BV1 2.2 kW 1-Phase VFD

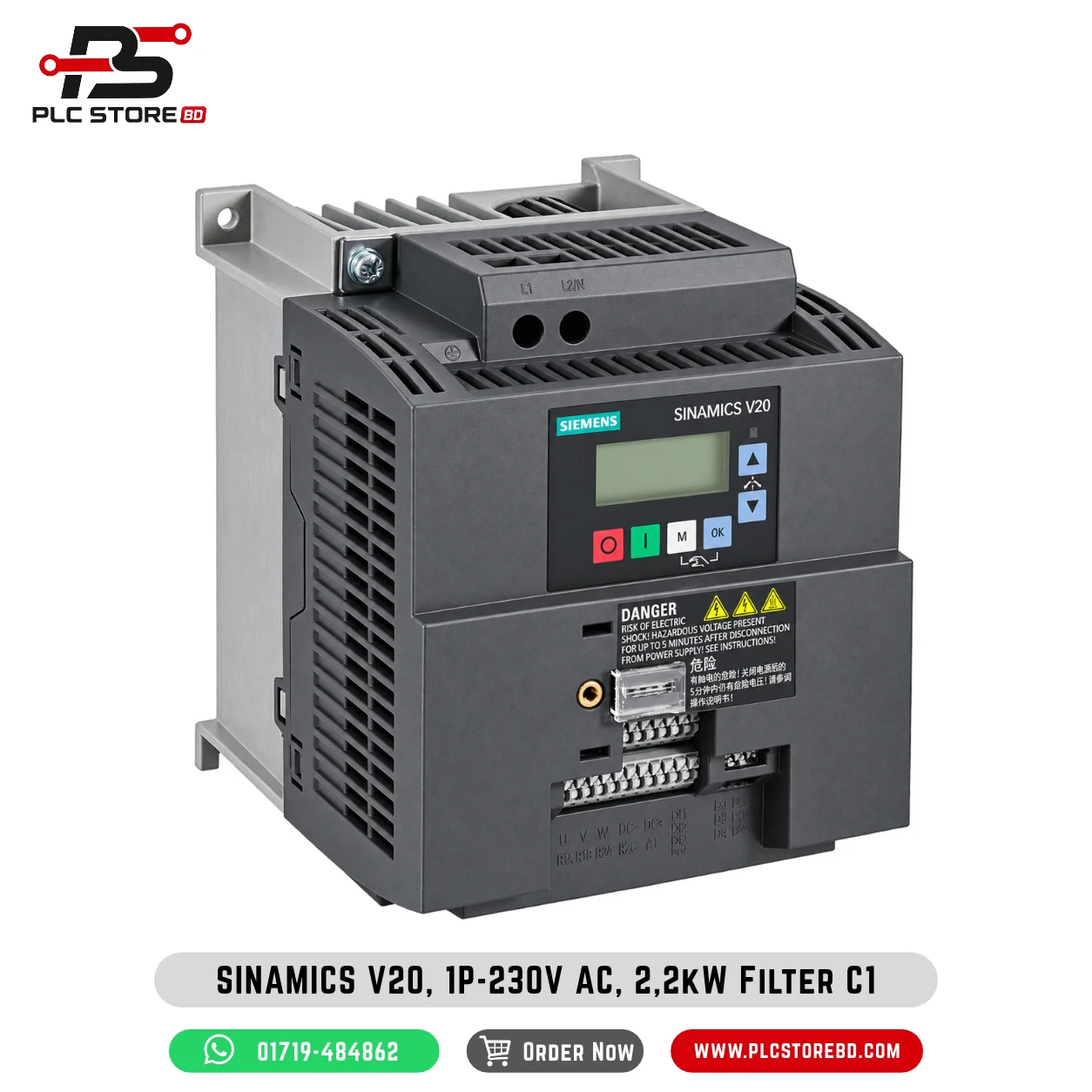

6SL3210-5BB22-2BV1 is a Siemens SINAMICS V20 variable-frequency drive for adjustable-speed operation of suitable three-phase AC motors from a single-phase 200–240 V AC mains supply. Its exact manufacturer ordering number identifies the 2.2 kW model with an integrated Class B EMC filter, built-in Basic Operator Panel, and IP20 enclosure. For purchasers evaluating replacements or new control panels, the power rating, input phase, duty basis and EMC configuration should be checked together rather than assuming that all V20 units have identical electrical characteristics.

Electrical Ratings

The converter accepts one-phase AC input rated 200–240 V with a manufacturer datasheet tolerance of −15%/+10%, at 47–63 Hz line frequency. It generates a three-phase output rated at 230 V under the IEC convention; the datasheet also gives a 240 V NEC basis. Rated motor power is 2.20 kW (3.00 hp) in both Low Overload and High Overload modes. The continuous rated output current is 11.00 A in both modes, according to Siemens. The permitted output-frequency setting range is 0–550 Hz, but motor and machine speed limits must be observed. Siemens cautions that output current and HP figures are valid at a 220–240 V supply basis. Selection should therefore account for actual mains voltage, motor nameplate current and thermal limits.

Control Modes and Performance

The SINAMICS V20 platform provides configurable variable-frequency motor control for ordinary adjustable-speed machinery. Low Overload permits 110% of rated output current for 60 seconds with a 300-second cycle; High Overload permits 150% for 60 seconds, also on a 300-second cycle. These are short-duration overload capacities, not alternative continuous currents. A suitable motor, mechanical load and acceleration ramp must be selected so that neither current nor duty limits are exceeded. This description does not claim unsupported closed-loop servo positioning or certified motion-safety functions.

Communication and Configuration

The manufacturer datasheet identifies USS and Modbus RTU as communication protocols for this exact model. Siemens’ product listing also identifies a built-in Basic Operator Panel for local parameter access and commissioning. The specification of a communication protocol does not by itself establish that Ethernet or other network interfaces are present. External controllers must be configured with compatible serial communications and appropriate parameter settings. Optional communication accessories should be checked separately for compatibility and are not represented as supplied.

Braking, EMC and Built-in Functions

This BV1 version includes an integrated Class B EMC filter, described as the C1-filtered variant in Siemens product comparison information. Actual installation compliance still depends on grounding, shielded cabling, routing and site conditions. Siemens’ exact-part technical sheet states that there is no integrated braking chopper. Do not assume that a braking resistor is supplied or that connecting one directly is supported without the prescribed external hardware. The V20 includes configurable local and I/O-based control functions; parameters and compatible control arrangements should be verified in the official operating instructions before system integration.

Installation and Operating Conditions

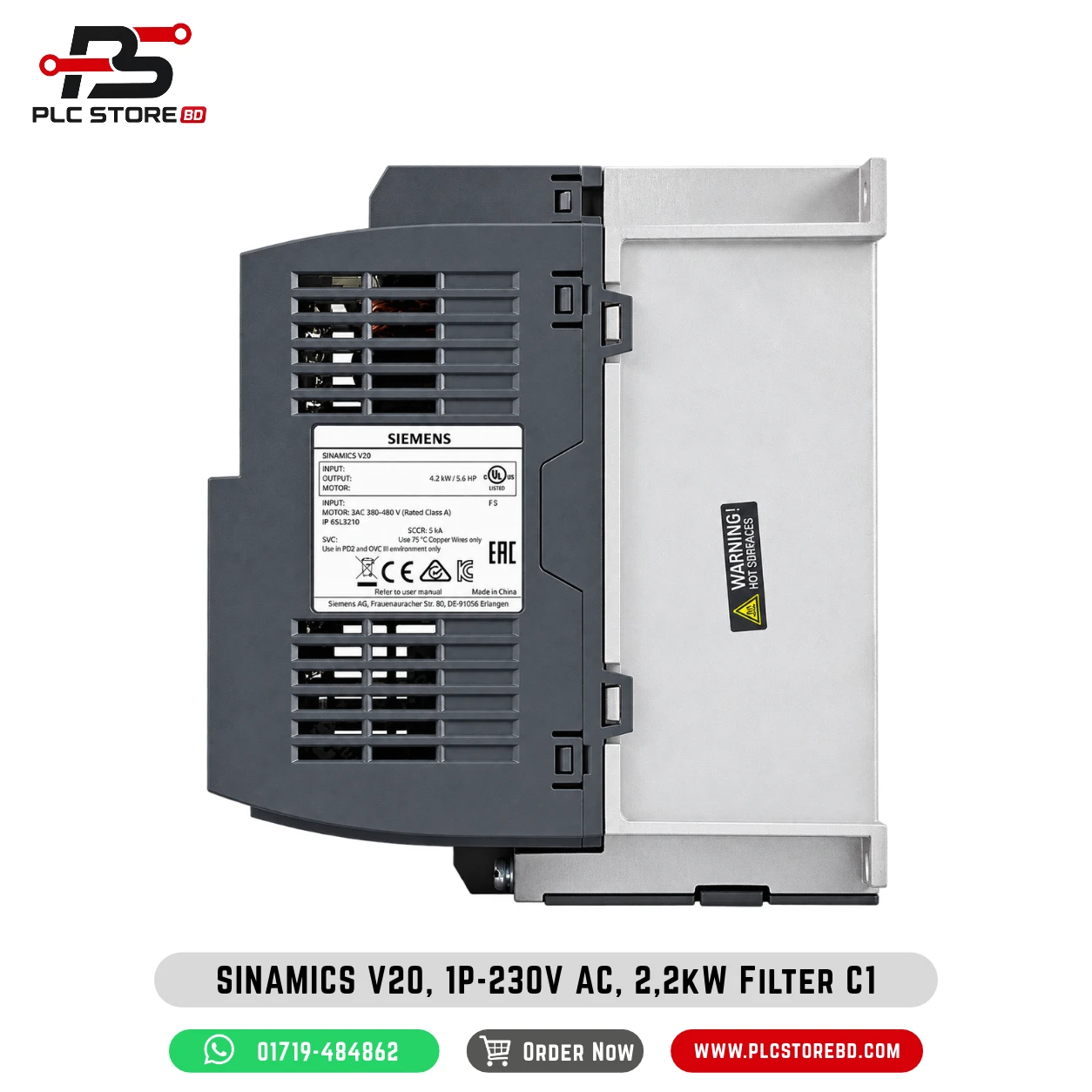

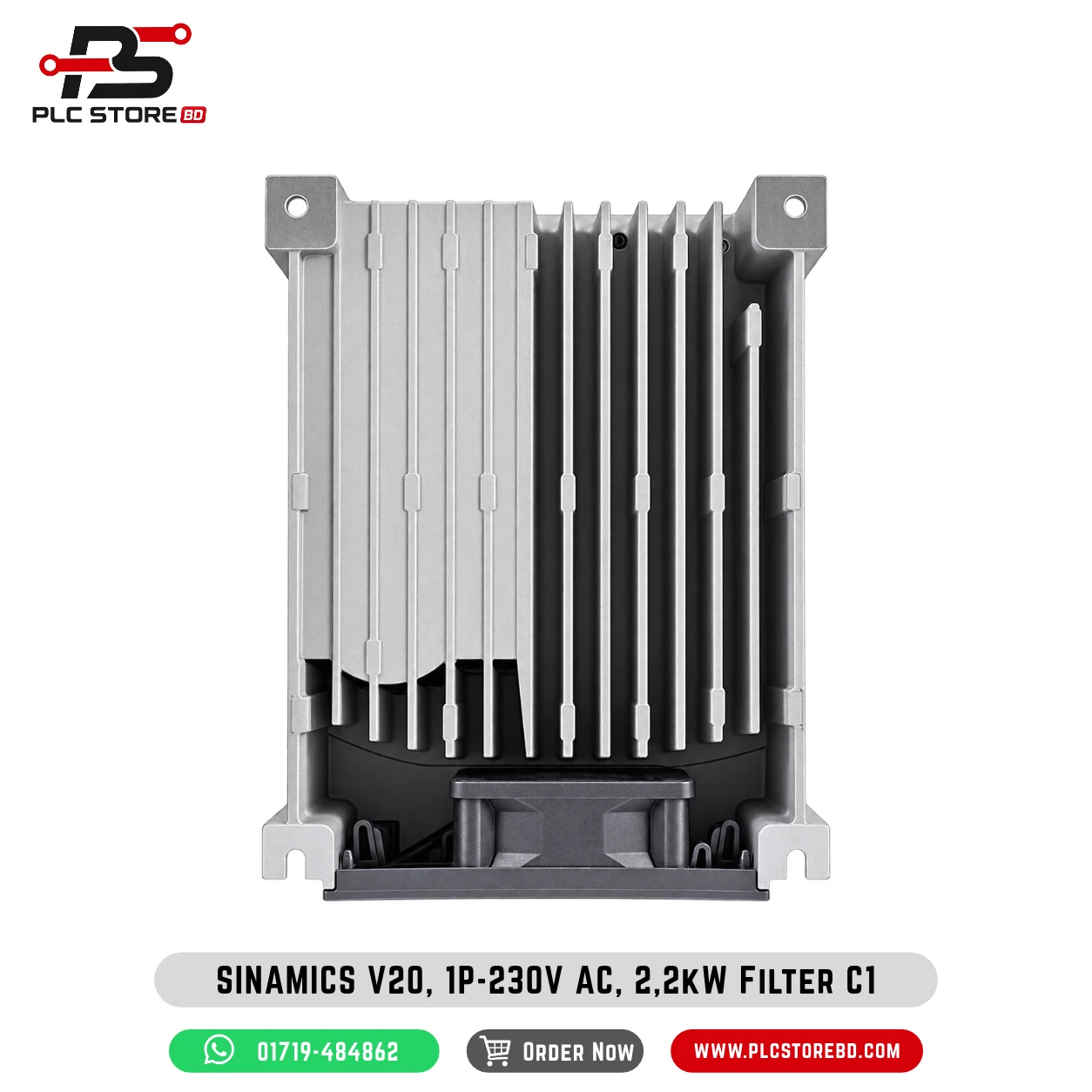

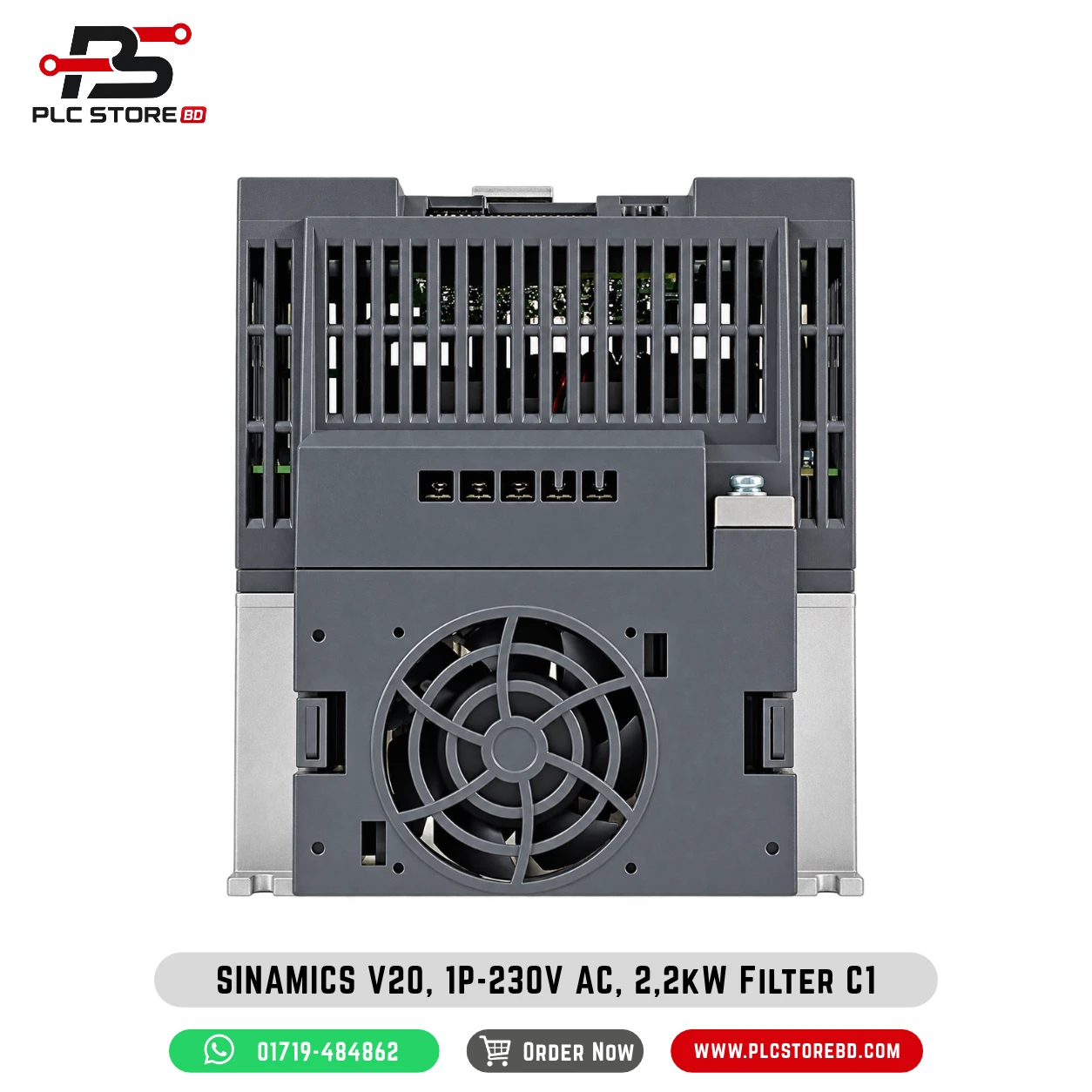

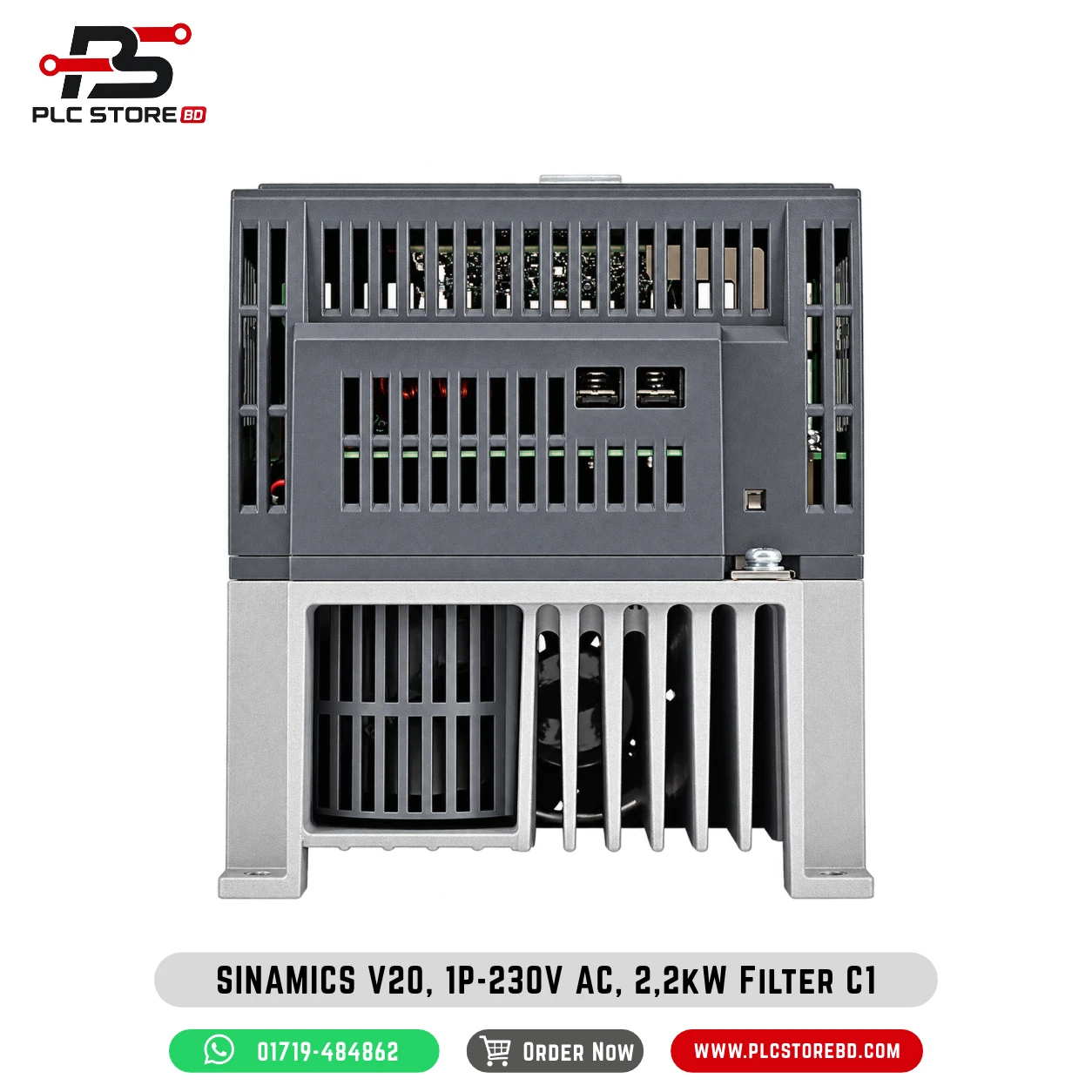

The drive uses the FSAD frame, with datasheet dimensions of 136.6 × 176.5 × 158.8 mm and IP20 protection. The listed cooling method is an external fan. Published ambient operation extends from −10 °C to 60 °C, with derating required at 40 °C and above; Siemens also specifies an installation-altitude reference of 1,000 m. The maximum stated motor-cable lengths are 25 m shielded and 50 m unshielded. Proper protective enclosure design, ventilation, line protection and electrical installation remain essential. The drive’s IP20 protection is not a substitute for a suitable industrial panel.

Applications and Selection Guidance

This 2.2 kW model is a potential fit for compatible pumps, fans, ventilation blowers, light conveyors, mixers and other ordinary variable-speed industrial machines where the motor load fits its 11 A output rating and the duty cycle fits the application. These are engineering-based suggestions rather than guaranteed manufacturer-approved combinations. Applications requiring rapid deceleration, holding torque, feedback positioning or specialized motor control may need further engineering review and external components. Confirm motor type, current, winding connection, mains compatibility and machine safety independently. The integrated EMC filter may be particularly relevant where the specified EMC installation category is needed.

Exact Variant Verification

The ordering suffix -BV1 is material: 6SL3210-5BB22-2BV1 is the filtered single-phase-input 2.2 kW model, not an unfiltered -UV1 drive or a differently powered SINAMICS V20. Its Class B filter, FSAD frame and 11 A rating should not be transferred to other Siemens part numbers. Siemens’ exact-product datasheet is the preferred basis where third-party catalogue snippets disagree on output current. Output and overload specifications should also be checked against the current product label and current Siemens technical documentation.

Official Manufacturer Links

Official Manufacturer Product Page: https://mall.industry.siemens.com/mall/en/en/Catalog/Product/6SL32105BB222BV1

Official Manufacturer Datasheet / Technical Documentation: https://mall.industry.siemens.com/spice/docuservice/docuservice?configid=14&docu.generationtype=VIEW&docu.inittype=MLFB&docu.language.locale1=en&docu.language.locale2=en&docu.mlfb=6SL3210-5BB22-2BV1&docu.viewid=PDF&language=en&region=WW
